Geometric and shaped windows bring architectural character to homes that standard rectangles can’t match. In Pinewood, FL, where the Florida Building Code demands High-Velocity Hurricane Zone protection even for accent windows, Sightline Windows & Doors Pinewood fabricates and installs triangular, hexagonal, octagonal, and curved configurations that carry full impact-glass ratings. We’re not talking about decorative clerestory units that get boarded up every storm season. These are engineered, laminated, NOA-documented assemblies that sit in your wall year-round and handle what the Gulf throws at them. We’ve installed shaped impact windows across Pinewood’s coastal and inland neighborhoods, from gabled lakefront homes to Mediterranean courtyard villas. Whether you’re replacing a failed unit or designing new construction, we’ll measure your opening, specify the right design pressure, and fabricate to fit. Call (786) 574-6217 to schedule your free on-site measurement.

Call (786) 574-6217

Product Overview - Geometric & Shaped Windows

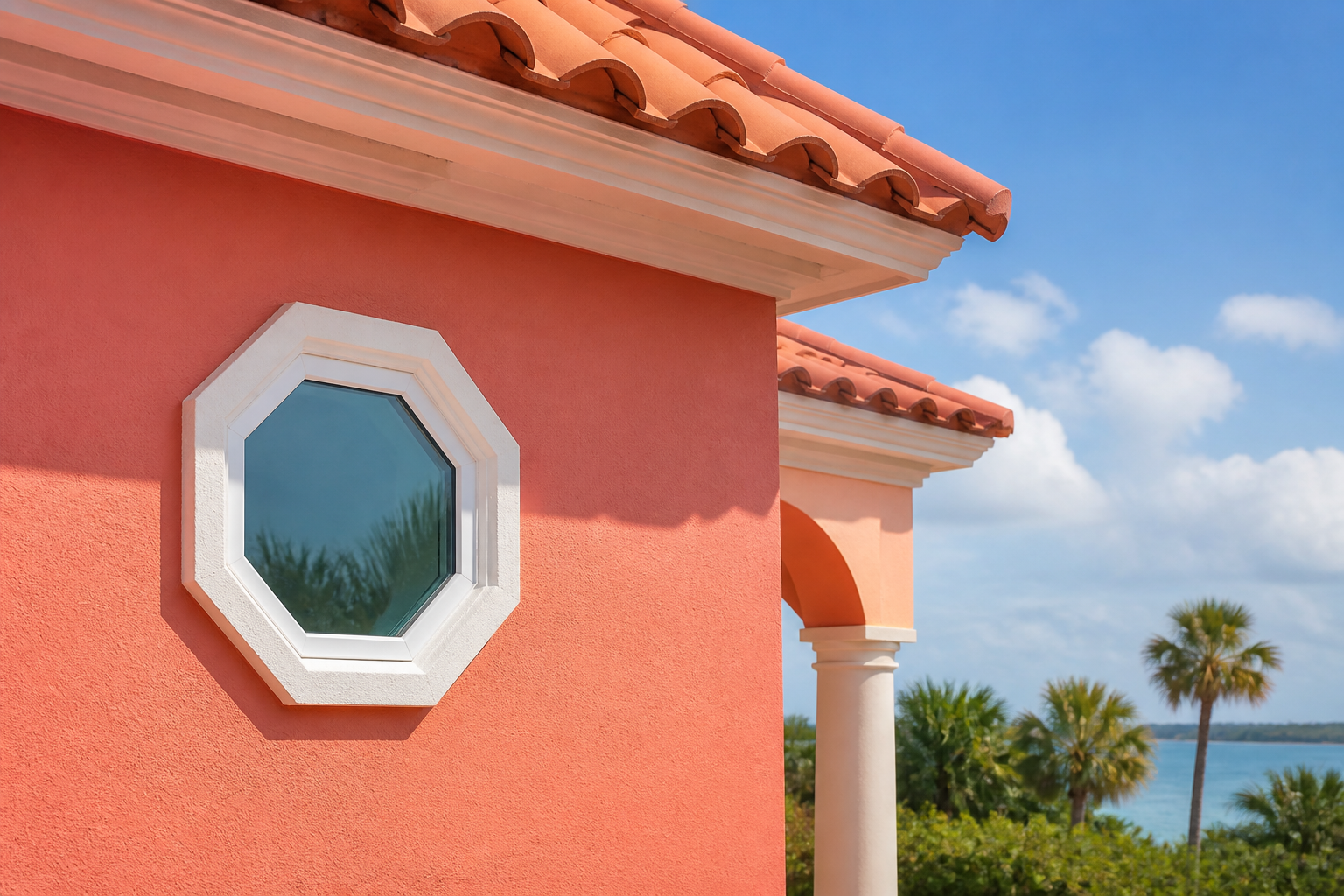

Standard windows fill rectangular holes. Geometric and shaped windows turn those openings into design statements. In Pinewood’s varied architectural landscape, we see these units specified as gable-end triangles, stairwell hexagons, foyer octagons, and radius-topped transoms above entry doors. The difference with Sightline Windows & Doors Pinewood’s approach is that every configuration we sell is built on an impact-rated platform from PGT, CGI, CWS, ES Windows, ECO, or Mr-Glass. That means the glass, frame, and anchorage system are engineered as a tested assembly, not cobbled together from generic components.

The short version: these are custom-fabricated to your opening. We don’t pull a standard size off a shelf and hope it works. Our team measures the rough opening, accounts for the structural header and king stud layout, and orders fabrication to those dimensions. The frame materials available are aluminum and vinyl, selected based on your home’s exposure, your aesthetic preference, and the engineering requirements of the specific shape. A large gable triangle facing open water in Pinewood sees different loads than a small octagonal bath window tucked under a soffit. We match the material and wall anchorage to the application.

What makes this profile suited to hurricane-prone construction starts with the laminated glass. Unlike standard annealed glass that shatters into dangerous shards, laminated impact glass with a PVB interlayer cracks but stays in the frame, maintaining the pressure envelope even after a direct impact. The frame itself is reinforced at the corners and mullions to handle the asymmetric loads that shaped windows experience. Triangles, in particular, concentrate stress at the acute angles, so the extrusion wall thickness and internal gusseting matter. We’ve learned which fabricators engineer these details properly and which cut corners. Sightline Windows & Doors Pinewood only sources from lines that document their corner construction through Miami-Dade NOA submittals.

Before

After

Technical Specifications

• Frame materials: Aluminum extrusions for maximum strength in large or high-load configurations; vinyl for thermal performance and low-maintenance applications in Pinewood’s salt-air environment.
• Maximum size: Custom fabricated to order. No catalog maximum applies; engineering and glass fabrication capabilities determine the limit for your specific shape and design pressure requirement.
• Glass options:
  • Laminated Impact Glass with PVB interlayer - the HVHZ-compliant base configuration
  • Low-E Insulated Glass - dual-pane with low-emissivity coating for thermal control
  • Tinted Glass - solar heat gain reduction for west and south exposures
  • Clear Glass - maximum visible light transmission where thermal performance is secondary
• Color and finish options: White, Almond, Bronze, Black, Tan. Powder-coat finishes on aluminum; integral color through vinyl extrusion.
• Design pressure rating: Matched to your wind zone, up to +/-100 PSF. Never rated higher than required.
• Compliance documentation: Miami-Dade NOA and Florida Product Approval numbers issued per specific configuration. Verify on your quote.

Hurricane & Compliance Performance

Laminated Impact Glass with PVB Interlayer

The glass in every geometric and shaped window we install carries a polyvinyl butyral interlayer bonded between two lites. When debris strikes, the outer lite may crack, but the PVB membrane stretches and holds the fragments in place. The inner lite maintains the pressure barrier. This is the foundational technology that lets shaped windows in Pinewood skip hurricane shutters and still meet code.

Miami-Dade NOA and Florida Product Approval

Every configuration we quote carries traceable approval numbers. Miami-Dade NOA documents are issued per specific frame, glass, and anchorage combination. Florida Product Approval numbers cover statewide use. We list these on your quote so your building department and insurance underwriter can verify them directly. No generic claims, no hand-waving.

FBC High-Velocity Hurricane Zone Compliance

Pinewood sits within the HVHZ, the most stringent wind-borne debris region in the Florida Building Code. Our geometric and shaped windows are engineered to these requirements from the extrusion design through the installation detail. This isn’t an upgrade or an option. It’s the baseline for every unit we sell.

TAS 201, 202, 203 Testing Protocol

The product families we source are tested under the TAS protocol family: TAS 201 for large-missile impact resistance, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. These are the specific test methods that underpin HVHZ product qualification in Florida, not generic national standards applied out of context.

Design Pressure Matched to Your Wind Zone

We specify design pressure to the PSF rating your location and exposure require, up to +/-100. A window rated for higher pressure than necessary adds cost without benefit. A window rated too low fails inspection or, worse, fails in a storm. Our field measurement includes exposure category and mean roof height to get this right.

Energy Performance Options

Low-E insulated glass configurations are available across our geometric and shaped lines. The low-emissivity coating reflects infrared heat while passing visible light, and the insulated airspace reduces conducted heat gain. In Pinewood’s cooling-dominated climate, this matters for west-facing gable triangles and south-facing clerestories that catch hours of direct sun.

Color & Glass Options

The five standard finishes we offer cover the architectural vocabulary we see in Pinewood. White and Almond remain the default for coastal Mediterranean and Florida ranch homes, blending with stucco and trim palettes that have defined the region for decades. Bronze and Black have gained ground on contemporary builds and renovations where window frames are meant to read as deliberate graphic elements against light walls. Tan bridges the gap, working with natural stone and earth-tone exteriors without the high contrast of black.

Glass selection follows function. Laminated impact glass with PVB interlayer is the code-required base; you don’t downgrade from this in the HVHZ. Where we add options is in the second surface and airspace. Low-E insulated glass is our recommendation for any shaped window that sees significant solar exposure, especially triangles and trapezoids in gable ends that lack the shading of eaves. Tinted glass, typically gray or bronze, cuts visible light and glare for west-facing stairwells and landings. Clear glass stays in the mix for interior-facing geometric units where thermal load is minimal and you want maximum daylight penetration into central spaces. We’ll walk the orientation of your specific openings and recommend accordingly during your free estimate.

Installation by Sightline Windows & Doors Pinewood in Pinewood

An NOA-rated window becomes a failed window if the installation ignores the engineering. We’ve seen it in Pinewood: a geometric unit installed out of square, with gaps filled by caulk instead of proper shimming, or anchored with fasteners that don’t match the NOA detail. The frame twists under wind load. The sealant joint fatigues. Water finds the path.

Our installation process starts with a pre-install inspection of the rough opening. We check the header for level, the jack studs for plumb, and the sill for flat. Geometric windows are unforgiving here. A rectangle can hide slight racking in the shim space. A triangle or octagon telegraphs every angle error into visible frame distortion and operational binding. We correct the opening before the window arrives.

Setting is done level, plumb, and square, with continuous shimming that transfers load evenly to the framing. Our perimeter seal uses AAMA 812 low-expansion foam, specified in the NOA details we follow, which fills the rough-opening gap without distorting the frame as it cures. The installation itself complies with AAMA 2400/2410 practice standards for fenestration installation. These aren’t manufacturer guidelines we interpret loosely. They’re the documented procedures that keep the warranty and the code approval intact.

After setting, we run a water test on the exterior seal, check interior trim clearance, and clean the site. For Pinewood’s HVHZ jurisdiction, we’re familiar with the permit submittal requirements and the inspection sequence. Your geometric window’s NOA and Florida Product Approval numbers are referenced on the permit application. The inspector verifies the label and the installation detail against the approved documents. We don’t leave you to figure this out alone.

Coastal exposure in Pinewood adds considerations we account for: salt-air corrosion resistance on aluminum finishes, proper weep drainage for wind-driven rain, and fastener selection for the treated lumber or steel framing in your specific wall assembly. Every shaped window we install is done as if our own license and insurance were on the line, because they are.

Frequently Asked Questions - Geometric & Shaped Windows

What wind zone and design pressure is the Geometric & Shaped Windows rated for?

Design pressures are matched to your specific wind zone, up to +/-100 PSF. We calculate the required rating based on your Pinewood address, exposure category, and the window’s location in the structure. Call (786) 574-6217 and we’ll run the numbers for your project during your free estimate.

What is the lead time for custom geometric and shaped windows?

Lead times vary by manufacturer line, shape complexity, and current fabrication queue. Simple triangles from stocked extrusion systems may move faster than large-radius units requiring custom die work. We provide a firm lead time on your written quote and coordinate delivery with your construction schedule. Call (786) 574-6217 to check current availability for your configuration.

Does my permit require a Miami-Dade NOA or Florida Product Approval submittal?

Yes. Pinewood’s building department in the HVHZ requires documented product approval for every impact-rated window. We include the specific NOA or Florida Product Approval number for your exact frame, glass, and size configuration on the submittal package we prepare for your permit. This is standard on every Sightline Windows & Doors Pinewood installation.

Can I customize the size or configuration of my geometric window?

Every geometric and shaped window we sell is custom fabricated to your opening dimensions. Triangles, hexagons, octagons, trapezoids, circles, ellipses, and combined shapes are all available within the engineering limits of the product line. We measure, you approve the shop drawing, and the factory builds to that specification. Call (786) 574-6217 to start with a field measurement.

How do I maintain the frame and glass on a shaped impact window?

Rinse aluminum and vinyl frames with fresh water quarterly to remove salt buildup, especially on Pinewater-facing elevations. Wash glass with mild detergent and a soft cloth; avoid abrasive pads that scratch the Low-E coating if present. Inspect weep holes annually for debris blockage. Lubricate any operable hardware with a silicone-based product. The laminated glass surface can be cleaned like any window; the interlayer is internal and requires no maintenance. Call (786) 574-6217 if you notice sealant cracking or frame movement after severe weather.

Get a Quote - Geometric & Shaped Windows in Pinewood

Ready to move from concept to measured specification? Sightline Windows & Doors Pinewood will visit your Pinewood property, assess the opening, discuss shape and glass options, and prepare a written quote with the specific NOA or Florida Product Approval numbers your permit requires. There’s no charge for the measurement and no obligation beyond that conversation. Shaped windows demand precision from first sketch to final anchor. We’ve built our reputation in Pinewood on getting that precision right. Call (786) 574-6217 today to schedule your free on-site measurement and start your project.

Written by the team at Sightline Windows & Doors Pinewood, serving Pinewood, FL with hurricane-impact windows and doors.
